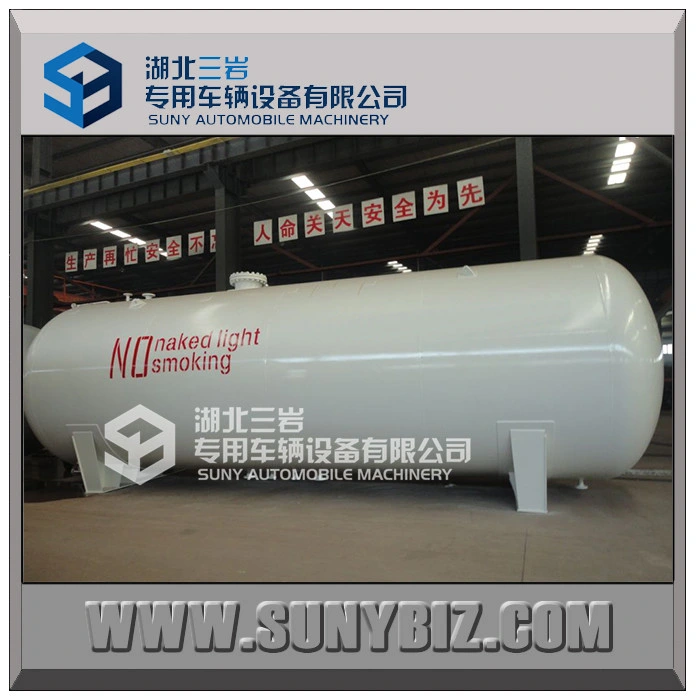

1.Hot Sale 50000L LPG Bullet Tank - Horizontal Propane Storage Tank

1. LPG propane storage tank volume : 50M3
2. LPG storage tank design standard:ASME ,China GB150
3. LPG storage tank design pressure:1.77Mpa
4. LPG storage tank useful time: 10-20 years

2. 50M3 LPG storgae tank specification:

tank diameter	2300mm	2400mm	2600mm	2700mm	2800mm
tank type	III	III	III	III	III
working Medium	LPG (propane)	LPG(propane)	LPG (propane)	LPG(propane)	LPG(propane)
Design Specific Gravity	0.42 Kg/M3	0.42 Kg/M3	0.42 Kg/M3	0.42 Kg/M3	0.42 Kg/M3
media characteristics	Flammable and explosive	flammable and explosive	Flammable and explosive	flammable and explosive	flammable and explosive
capacity	50M3	50M3	50M3	50M3	50M3
External Dimensions (length*width*height)	12508*2324 *2914mm	11508*2428 *3018mm	9912*2628 *3218mm	9182*2728 *3318mm	8612*2832 *3422mm
tank weight (nominal)	10150kg	11140kg	10910kg	10640kg	11470kg
max payload weight	19950kg	19950kg	19950kg	19950kg	19950kg
tank material	Q345R	Q345R	Q345R	Q345R	Q345R
Barrel design thickness	12mm	14mm	14mm	14mm	16mm
Head design thickness	14mm	14mm	16mm	16mm	16mm
welded joint coefficient	1.0	1.0	1.0	1.0	1.0
design temperature	50ºC	50ºC	50ºC	50ºC	50ºC
working temperature	-20~50 ºC	-20~50 ºC	-20~50 ºC	-20~50 ºC	-20~50 ºC
Corrosion allowance	1.0 mm	1.0 mm	1.0 mm	1.0 mm	1.0 mm
design pressure	1.77 MPa	1.77 MPa	1.77 MPa	1.77 MPa	1.77 MPa
Hydraulic test pressure	2.22 MPa	2.22 MPa	2.22 MPa	2.22 MPa	2.22 MPa
leak test pressure	1.77 MPa	1.77 MPa	1.77 MPa	1.77 MPa	1.77 MPa
Heat treatment type	Wholly get rid of tress	Wholly get rid of tress	Wholly get rid of tress	Wholly get rid of tress	Wholly get rid of tress
Paint	paint  white color, or paint the color you request.	paint  white color, or paint the color you request.	paint  white color, or paint the color you request.	paint  white color, or paint the color you request.	paint  white color, or paint the color you request.


 3. Our more LPG tank Series:
Filling media: LPG , liquefied petroleum gas (propane), propylene, liquid ammonia, dimethyl ether and methanol, butadiene, isobutane, epoxy ethane, methyl amine in different properties such as low pressure liquefied gas under normal temperature.

----- LPG tank truck tank capacity: 5,500L-35,000L
----- LPG tank semi trailer tank capacity: 30,000L-60,000L
----- LPG storage tank tank capacity: 5,000L-120,000L
----- LPG tank container tank capacity: 20ft~40ft  20000-50000L
----- LPG cylinder tank capacity:  3kg-120kg
----- LPG skid tank tank capacity: 10000-30000L

4. More picture show



5. Product List

1.  Fuel tank truck/trailer/semi-trailer/container.
2.  Water tank truck/trailer/semi-trailer/container.
3.  Chemical tank truck/trailer/semi-trailer/container.
4.  Bitumen tank truck/trailer/semi-trailer/container.
5.  Bulk powder tank truck/trailer/semi-trailer/container.
6.  Gas tank truck/trailer/semi-trailer/container.
7.  Dump truck/trailer/semi-trailer
8.  Truck mounted crane
9.  Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

6. truck more optional

---Steering control : Left hand drive ( LHD ) / Right hand drive ( RHD )
---Drive type : 4x2 ~ 4x4 ~ 6x2 ~ 6x4 ~ 6x6~8x4
---Emission standard: Euro 1 , Euro 2 , Euro 3 , Euro 4 , Euro 5
---Truck brand : DONGFENG , SINOTRUK , SHACMAN , FOTON , FAW , BEIBEN , JAC , IVECO , JMC , YUEJIN , HINO , UD , ISUZU etc.



7. Packaging & Shipping

Truck is nude packing, shipping by container, bulk cargo, ro-ro.

We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

8. Products service
 We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
 Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide        quality
items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and  spare parts in time for customer .

9.Why choose us?

Factory
We have own factory and skilled worker, rich-experienced design team and responsible QC and good after sales service.

Quality and Price
We are stricktly control quality from raw material to finished products. And ensure high quality of your required products. Also we manage to control the cost to save every penny for your party.

Amount
We can provide various kinds of special truck and trailer, various machinery for your choices. Also, we can customize per your specific requirements.

Your Model
Our design team can design per your specific text description and reference design.

Of the Public Accounts
All the payment will be received by our company bank account. Also all the transaction by monitored by union pay.

Convenient Transportation
We coopertated with efficient logistics. Which ensure the goods can be reached you timely. And win much more time for your party.

Choose
All the discussion and terms will be showed in our contract. Which ensure your interests legally. Also welcome to visit us at any tim.

Pre-consultation
Please contact us before you place order, or need any technical support or guildance.

Specialty
We have careful sales and merchandiser, own factory and long term cooperated logistics, and after-sales worker.

Commissioner
We have patient and efficient pre-sales worker, and considerate after-sales workers, who do best for your part.

All The Time
We are standing by 24 hours. Including public holidays.

What you can get from us
Get the new products, and meet your processing requirements.
Our quality products help you to win money and earn much time.
We always do our best to save cost for you and ensure the quality goods.
Our rich-experience technical teams are standing by all the tiim
You can know the advance overseas technoloty from our products. Which bring you more competitive advantanges.


10.Contract
And more customize products.All more detailed specification and pictures for trucks, please kindly contact with

Freda Wang
Cell  : 0086 13886883411



We warmly welcome you to our factory for inspection.
We also produce other different kinds of special automobile.
